ACM1513F-Series

描述

Features & Application

• Chip common mode filter for large current applications

For each series, there is excellent common mode impedance and noise suppression in a compact case.

• Compatible with high-density portable devices, which are always being made smaller and lighter, because the height has been reduced.
• Power line noise countermeasure for various electronic equipmen Noise countermeasure for adapter lines and battery lines orPCs and word processors. larger electronic equipment such as note book
• Environmental RoHS compliant, halogen free
• Terminations RoHS compliant matte tin over nickel over silver palladium-glass frit.
• Ambient temperature –40°C to +85°C with Irms current.
• Maximum Part Temperature +105°C
• Storage temperature Component: –40°C to +85°C. • Tape and reel packaging: –40°C to +80°C
• Resistance to soldering heat Max three 40 second reflows at +260°C, parts cooled to room temperature between

Moisture Sensitivity Level (MSL) 1 (unlimited floor life at <30°C /85% relative humidity).

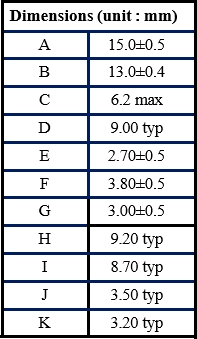

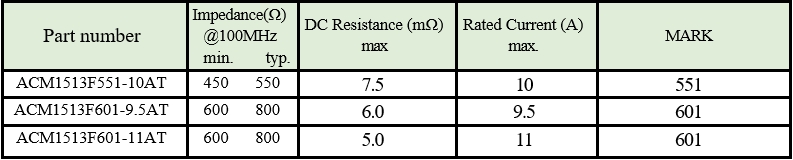

★ When ordering, please check part number

Isolation (Vrms) : 250V. Winding to winding isolation (hipot) tested for one minute.

Impedance/Inductance/Q/  LCR Angilent E4991A/4263B
Resistance DC   Chroma 16502
Current per winding that causes a 20°C rise from 25°C ambient Electrical specifications at 25°C

Weight 3802 – 3815 mg.
Packaging 350/13″ reel; Plastic tape: 24 mm wide
Packaging will different,accroding the various chip size.

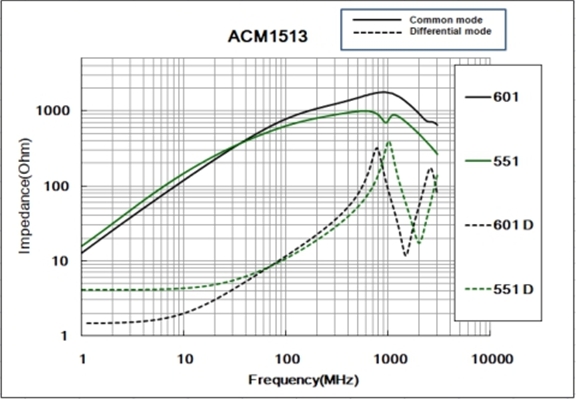

Typical Impedance vs Frequency

Common Mode & Differential mode

1. Operating temperature range: -40 TO + 125℃(Includes temperature when the coil is heated)
2. External appearance: On visual inspection, the coil has no external defects.
3. Terminal strength: After soldering. Between copper plate and terminals of coil. Push in two directions of X.Ywithstanding at below conditions.

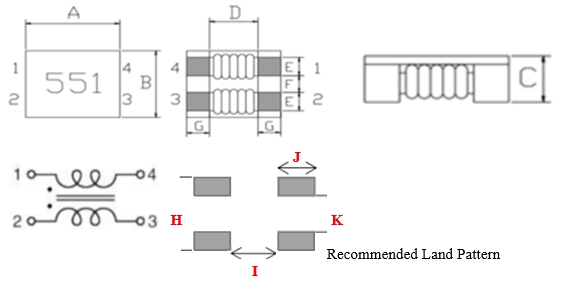

   Terminal should not peel off. (refer to figure at right) 0.98kg Min –1513
4. Insulating resistance: Over 100MΩ at 100V D.C. between coil and core
   5. Dielectric strength: No dielectric breakdown at 100V D.C. for 1 minute between coil and core
   6. Temperature characteristics: Inductance coefficient (0~2,000)x10-6/ ( ℃ -25~+80 ). ℃ , inductance deviation within±5.0%, after 96 hours.
   7. Humidity characteristics(Moisture Resistance): Inductance deviation within ±5%, after 96 hours in 90~95% relative humidity at 40 ±2 and 1 hour drying under normal condition.



   8. Vibration resistance: Inductance deviation within ±5%, after vibration for 1 hour. In each of three orientations at sweep vibration (10~55~10 Hz) with 1.5mm P-P amplitudes.
   9. Shock resistance: Inductance deviation within ±5%, after being dropped once with 981m/s2 (100G) shock attitude upon a rubber block method shock testing machine, in three different
   10. Resistance to Soldering Heat: 260 , 10 seconds(See attached recommend reflow)
   11. Storage environment: Storage condition: Temperature Range: 10 ~ 35 (Generally: 21 ~ 31 ) , Humidity Range: 50% ~ 80% RH (Generally: 65% ~ 75%) ; Transportation condition: Temperature Range:-35 ~ 85 , Humidity Range: 50% ~ 95% RH
   12. Use components within 12 months. If 12 months or more have elapsed, check soldarability before use.

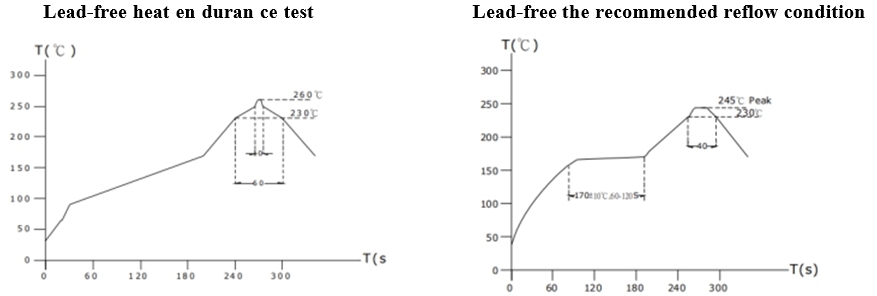

   13. Reflow profile recommend:
